Automatic Weld Tube Mill Round Square Pipe Roll Forming Machine for Construction Works

Product Categories
JIANGSU NANYANG MACHINERY MANUFACTURING CO.,LTD
Contact Now

Automatic Weld Tube Mill Round Square Pipe Roll Forming Machine for Construction Works

place of origin : Jiangsu, China

machine type : Tube Mill Line

video outgoing-inspection : Provided

machinery test report : Provided

core components : PLC, Engine, Bearing, Gearbox, motor, Pressure vessel, Gear, Pump

brand name : Nanyang

warranty : 1 Year

key selling points : Long Service Life

weight (kg) : 9500

Diameter of welded tube : 114.3~325.9mm

Wall Thickness of welded tube : 3-12.7mm

Milling speed : 10-35M/Min

Pipe shape : Round Pipe

Cutting system : Cold Cutting Saw/Friction Saw

Marketing Type : Ordinary Product

Warranty of core components : 1 Year

Condition : New

Showroom Location : Viet Nam

Applicable Industries : Energy & Mining, Construction works , Building Material Shops, Manufacturing Plant

Price : CN¥28,818,400.00/sets >=1 sets

Contact Now

Products Description
Automatic Weld Tube Mill Round Square Pipe Roll Forming Machine Tube Making Machine
Automatic Weld Tube Mill Round Square Pipe Roll Forming Machine for Construction Works
Automatic Weld Tube Mill Round Square Pipe Roll Forming Machine for Construction Works
Automatic Weld Tube Mill Round Square Pipe Roll Forming Machine for Construction Works

Model

Welded pipe diameter

Welded pipe wall thickness

Welding speed

Main motor power

High frequency power
ZG90
Φ38～Φ127mm
δ1.2～4.5mm
20～70M/min
132KW×2
400KW
ZG115
Φ48～Φ127mm
δ1.4～5.0mm
20～60M/min
160KW×2
400KW
ZG165
Φ50.8～Φ165mm
δ1.8～6.0mm
15～50M/min
200KW×2
500KW
ZG219
Φ89～Φ219mm
δ2.0～8.0mm
12～40M/min
250KW×2
600KW
ZG273
Φ114～Φ273mm
δ2.5 ～10.0mm
10～30M/min
132KW×2, 160KW×2
800KW
ZG325
Φ168～Φ325mm
δ3.0 ～12.0mm
10～30M/min
160KW×2, 200KW×2
1000KW
ZG530
Φ219～Φ530mm
δ4.0 ～16.0mm
10～30M/min
75KW×5, 160KW×8
1500KW
ABOUT THE PRICE
Firstly, we provide free customized solution services！
The final price shall be based on the proposed quotation！
Automatic Weld Tube Mill Round Square Pipe Roll Forming Machine for Construction Works
Automatic Weld Tube Mill Round Square Pipe Roll Forming Machine for Construction Works
Automatic Weld Tube Mill Round Square Pipe Roll Forming Machine for Construction Works
Our Features
1.Increase production capacity and increase production speed by 50%.

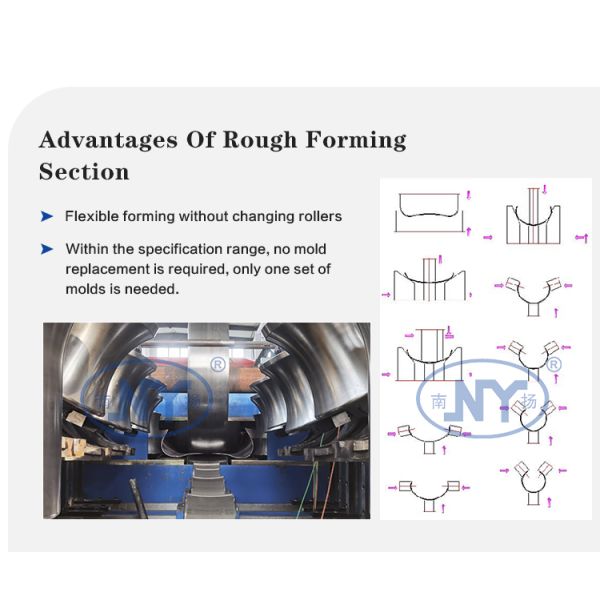

2.Reduce costs, reduce the cost of rough forming molds by over 70%, and reduce energy consumption.
3.Reduce production replacement time, reducing the over all mold replacement timeby over 60%.

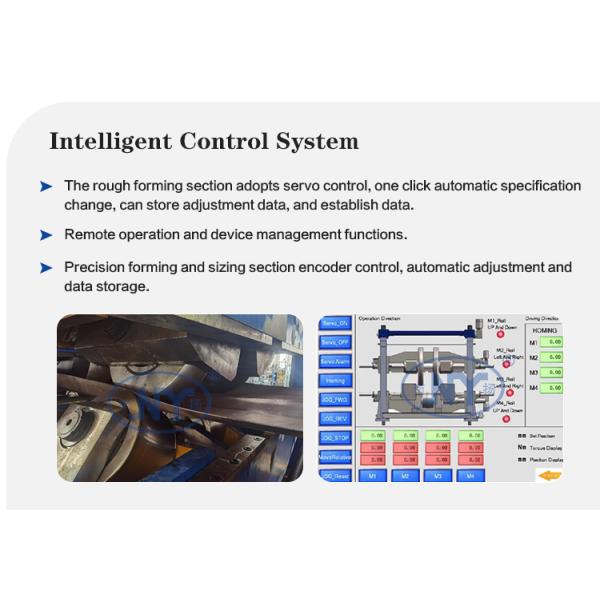

4.Improve automation and intelligence, make operations more convenient, reduce labor intensity, and support informatization.
5.lmprove product quality and avoid surface scratches on pipes.
Automatic Weld Tube Mill Round Square Pipe Roll Forming Machine for Construction Works
Automatic Weld Tube Mill Round Square Pipe Roll Forming Machine for Construction Works
Customer Feedback
Automatic Weld Tube Mill Round Square Pipe Roll Forming Machine for Construction Works
Recommend Products
Automatic Weld Tube Mill Round Square Pipe Roll Forming Machine for Construction Works
Company Profile
Automatic Weld Tube Mill Round Square Pipe Roll Forming Machine for Construction Works
VR
Automatic Weld Tube Mill Round Square Pipe Roll Forming Machine for Construction Works
Automatic Weld Tube Mill Round Square Pipe Roll Forming Machine for Construction Works
Automatic Weld Tube Mill Round Square Pipe Roll Forming Machine for Construction Works
Automatic Weld Tube Mill Round Square Pipe Roll Forming Machine for Construction Works
Automatic Weld Tube Mill Round Square Pipe Roll Forming Machine for Construction Works
FAQ
Automatic Weld Tube Mill Round Square Pipe Roll Forming Machine for Construction Works
Nanyang Machinery was founded in 1971. Since then, we have become the leading enterprisein the design and manufacture of tube mill line in China. We are granted the title of NationaHidden Champion Enterprise and National High-tech Enterprise. Our products include: highprecision and high-speed tube mill line, intelligent flexible forming tube mill line, automobileindustry tube mill line, stainless steel tube mill line and pipe forming rollers, etc. NanyangMachinery continues to create products with high strength, high precision and high speedOver the past 50 years, Nanyang product has been sold to over 70 countries and is highlyrecognized across the world. At present, Nanyang Machinery's sales volume, market shareand factory scale are all ranked first in the Chinese tube mill line industry.
