Nanyang Automatic Pipe Making Machine Efficiently Producing 8-32mm Diameter Welded Tubes for Manufacturing Needs

place of origin : Jiangsu, China

machine type : Tube Mill Line

video outgoing-inspection : Provided

machinery test report : Provided

core components : PLC, Engine, Bearing, Gearbox, motor, Pressure vessel, Gear, Pump

brand name : Nanyang

warranty : 1 Year

key selling points : Long Service Life

weight (kg) : 6800

Diameter of welded tube : 8-32mm

Wall Thickness of welded tube : 0.4-1.3mm

Milling speed : 30-110M/Min

Main motor power : 45KW

High frequency power : 100KW

Annual output : 3700t

Cutting system : Cold Cutting Saw/Friction Saw

Pipe shape : Round Square Rectangle Pipe

Marketing Type : Ordinary Product

Warranty of core components : 1 Year

Condition : New

Showroom Location : Viet Nam

Applicable Industries : Energy & Mining, Construction works , Building Material Shops, Manufacturing Plant

Price : CN¥318,155.14-983,427.90/sets

Contact Now

Products Description

Nanyang Automatic Pipe Making Machine Accuracy Pipe Making Machine

Nanyang Automatic Pipe Making Machine Efficiently Producing 8-32mm Diameter Welded Tubes for Manufacturing Needs

Model	Welded pipe diameter	Welded pipe wall thickness	Welding speed	Main motor power	High frequency power
ZG16	Φ8～Φ25mm	δ0.25～1.0mm	30～120M/min	37KW	100KW
ZG25	Φ8～Φ32mm	δ0.3～1.3mm	40～120M/min	45KW	100KW
ZG32	Φ13～Φ40mm	δ0.4～2.0mm	30～110M/min	110KW	150KW
ZG45	Φ16～Φ50.8mm	δ0.5～2.5mm	30～110M/min	132KW	200KW
ZG50	Φ19～Φ63.5mm	δ0.6～3.0mm	30～100M/min	160KW	200KW
ZG60	Φ19～Φ63.5mm	δ0.7～3.5mm	30～100M/min	200KW	250KW
ZG76	Φ25～Φ90mm	δ0.9～4.0mm	20～80M/min	200KW	300KW
ZG90	Φ38～Φ127mm	δ1.2～4.5mm	20～70M/min	132KW×2	400KW
ZG115	Φ48～Φ127mm	δ1.4～5.0mm	20～60M/min	160KW×2	400KW
ZG165	Φ50.8～Φ165mm	δ1.8～6.0mm	15～50M/min	200KW×2	500KW
ZG219	Φ89～Φ219mm	δ2.0～8.0mm	12～40M/min	250KW×2	600KW
ZG273	Φ114～Φ273mm	δ2.5 ～10.0mm	10～30M/min	132KW×2, 160KW×2	800KW
ZG325	Φ168～Φ325mm	δ3.0 ～12.0mm	10～30M/min	160KW×2, 200KW×2	1000KW
ZG530	Φ219～Φ530mm	δ4.0 ～16.0mm	10～30M/min	75KW×5, 160KW×8	1500KW

ABOUT THE PRICE

Firstly, we provide free customized solution services！
The final price shall be based on the proposed quotation！

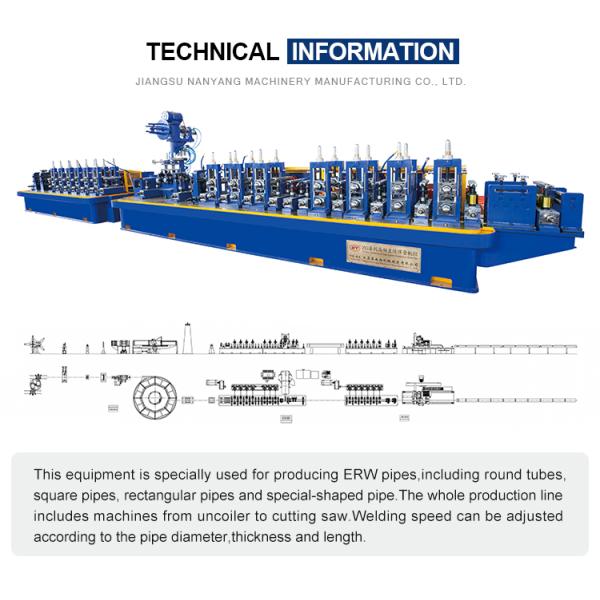

Forming Section

Function: to form the steel strips into a round shape and ready to be welded. Advantage: >Advanced forming technology >One-stage molding platform >Reliable quality gearbox >Siemens Beide motor

Welding Section Function: To weld the edges of the steel strips together by H.F. Welder (the H.F. Welder is not included). Forming & Sizing Mill Function: After welding, the pipes are almost the round shape, but it still needs to be modified into a regular round shape.

Standard configuration: 1. Uncoiler: Mechanical tension bridle manual adjustment . 2. Horizontal and vertical holder: Passed heat treatment to make black. The holder will rust protection when used. 3. Bearing : Used deep groove ball bearing 4. Welding : Argon welding machine (500A) . 5. Grinding head: Manual by hand to debugging. 6. Cutting machine: Abrasive cutting machine. 7. Drive motor used Siemens brand, grinding motor used Kaiyuan brand.

Customer Feedback

Company Profile

FAQ

Nanyang Machinery was founded in 1971. Since then, we have become the leading enterprisein the design and manufacture of tube mill line in China. We are granted the title of NationaHidden Champion Enterprise and National High-tech Enterprise. Our products include: highprecision and high-speed tube mill line, intelligent flexible forming tube mill line, automobileindustry tube mill line, stainless steel tube mill line and pipe forming rollers, etc. NanyangMachinery continues to create products with high strength, high precision and high speedOver the past 50 years, Nanyang product has been sold to over 70 countries and is highlyrecognized across the world. At present, Nanyang Machinery's sales volume, market shareand factory scale are all ranked first in the Chinese tube mill line industry.
